Eclipse java programming for Maximo 7.5 - Setup.

Goal:
Modify a bit of Maximo functionality through a Java modification


Problem:
I do not have the tools needed to do this.


Solution:
I need to install the tools needed to modify/create java files.
For this we need to download and then install Eclipse

Download it from: http://www.eclipse.org/downloads/
I used the Eclipse IDE for Java Developers (64 bit)

I follwed these steps:
http://maximodev.blogspot.nl/2010/09/quick-maximo-development-environment.html

I extract the downloaded zip to the E:\
From the E:\eclipse folder I run the 'eclipse.exe'

I get the Java error like stated in the post from Bruno:


I copy the jre folder from the Webshere/Appserver folder to the e:\eclipse folder and run eclipse.exe again



Now it starts.

As workspace i use 'E:\Workspace'


Since I will work with Maximo 7.5 I use the Compiler compliance level 1.6 (Windows ->  Preferences)




Now I create a new Java Project






Extract the maximo.ear into the workspace



In the Package explorer after doing a Refresh (F5) the maximo folder shows up.

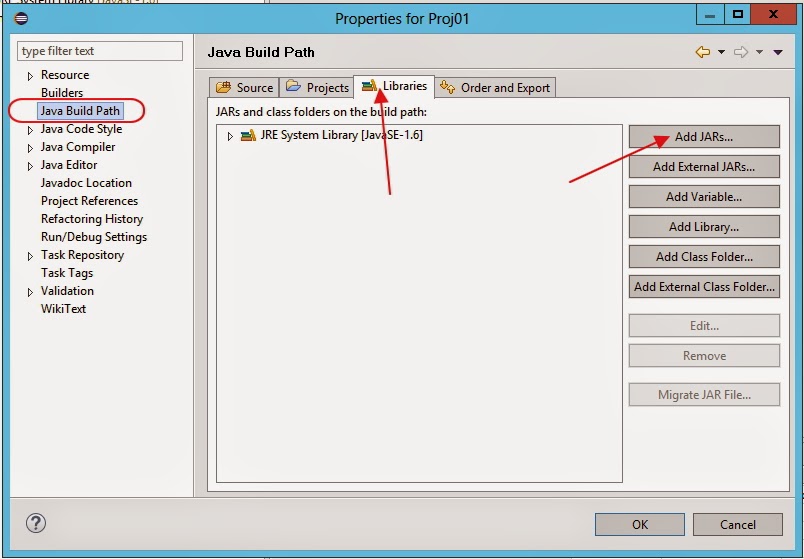

The I go to Project -> Properties and select the JAva build path.
In the Libraries tab I click [Add JARs]



And add the following jars:


  • maximo/lib/*.jar


Filter on *.jar and select all the jar files. (On the picture below, only the bottom of the list is shown)


  • maximo/businessobjects.jar


The list looks like this:



Then I create a folder structure in my project by Right Clicking on the src folder and adding folders.



I do this until I got this:



In the custom.app.asset I right click and create a new Class



With the info from the example of Bruno his blog:



I paste in the code from Bruno his blog:



Now the explanation on Bruno his post stops, He writes:
The custom Mbo class gets quickly compiled and is ready to be deployed on your Maximo server.

Eeuhhh ok... But how do I compile, or this done automatically?
And how do I deploy the custom Mbo? What do i need to do in Maximo to let it use the custom Mbo?

Seems like Bruno has some other very nice articles about that:

In his Maximo Java Development series he explaines a lot.
http://maximodev.blogspot.nl/p/java-customization.html

First I use:
http://maximodev.blogspot.nl/2012/05/maximo-extend-java-mbo.html
and find out the compiling is done automatically

Some picture and my 'doings' to go along with it:

First I save the Project, then I look around a bit I see that in the Project menu there is a Check at "Build Automatically" and the build option is grayed out. This must mean that my .java is already build to .class.



Then I look in the properties for the project and go to the Java Build Path option and look on the "Source tab" I see the Default output folder.



In Explorer I check this folder, and there is my class file.



I copy this files (and the folder structure) to:
E:\ibm\SMP\maximo\applications\maximo\businessobjects\classes




I rebuild and redeploy the ear file.


  • buildmaximoear.cmd
  • uninstall maximo application from websphere
  • install maximo application in websphere
Redeploying this way is very slow, especially when develping and testing, so for future reference I will use one of these methods:
http://maximodev.blogspot.nl/2012/08/maximo-rapid-java-class-deploy-websphere.html

After starting, MXServer is started, but the MAXIMO appliciation not.



In the SystemOut.log

[1/19/15 15:10:53:880 CET] 00000008 CompositionUn A   WSVR0191I: Composition unit WebSphere:cuname=MAXIMOIEHS in BLA WebSphere:blaname=MAXIMOIEHS started.
[1/19/15 15:10:53:880 CET] 00000000 ContainerHelp E   WSVR0501E: Error creating component com.ibm.ws.runtime.component.CompositionUnitMgrImpl@68116811
com.ibm.ws.exception.RuntimeWarning: com.ibm.ws.exception.ConfigurationWarning: org.eclipse.jst.j2ee.commonarchivecore.internal.exception.NestedJarException: IWAE0008E An error occurred reading mbojava.jar from E:\IBM\WebSphere\AppServer\profiles\ctgAppSrv01\config\cells\ctgCell01\applications\MAXIMO.ear\deployments\MAXIMO
at com.ibm.ws.runtime.component.ApplicationMgrImpl.start(ApplicationMgrImpl.java:2053)
at com.ibm.ws.runtime.component.CompositionUnitMgrImpl.start(CompositionUnitMgrImpl.java:439)
at com.ibm.ws.runtime.component.CompositionUnitImpl.start(CompositionUnitImpl.java:123)
at com.ibm.ws.runtime.component.CompositionUnitMgrImpl.start(CompositionUnitMgrImpl.java:382)
at com.ibm.ws.runtime.component.CompositionUnitMgrImpl.access$300(CompositionUnitMgrImpl.java:110)
at com.ibm.ws.runtime.component.CompositionUnitMgrImpl$CUInitializer.run(CompositionUnitMgrImpl.java:949)
at com.ibm.wsspi.runtime.component.WsComponentImpl$_AsynchInitializer.run(WsComponentImpl.java:349)
at com.ibm.ws.util.ThreadPool$Worker.run(ThreadPool.java:1604)
Caused by: com.ibm.ws.exception.ConfigurationWarning: org.eclipse.jst.j2ee.commonarchivecore.internal.exception.NestedJarException: IWAE0008E An error occurred reading mbojava.jar from E:\IBM\WebSphere\AppServer\profiles\ctgAppSrv01\config\cells\ctgCell01\applications\MAXIMO.ear\deployments\MAXIMO
at com.ibm.ws.runtime.component.ApplicationMgrImpl.initializeApplication(ApplicationMgrImpl.java:394)
at com.ibm.ws.runtime.component.ApplicationMgrImpl.start(ApplicationMgrImpl.java:2040)
... 7 more
Caused by: org.eclipse.jst.j2ee.commonarchivecore.internal.exception.NestedJarException: IWAE0008E An error occurred reading mbojava.jar from E:\IBM\WebSphere\AppServer\profiles\ctgAppSrv01\config\cells\ctgCell01\applications\MAXIMO.ear\deployments\MAXIMO
at org.eclipse.jst.j2ee.commonarchivecore.internal.strategy.NestedArchiveLoadStrategyImpl.throwNestedJarException(NestedArchiveLoadStrategyImpl.java:322)
at org.eclipse.jst.j2ee.commonarchivecore.internal.strategy.NestedArchiveLoadStrategyImpl.safeGetZipInputStream(NestedArchiveLoadStrategyImpl.java:339)
at org.eclipse.jst.j2ee.commonarchivecore.internal.strategy.NestedArchiveLoadStrategyImpl.getFiles(NestedArchiveLoadStrategyImpl.java:382)
at org.eclipse.jst.j2ee.commonarchivecore.internal.strategy.LoadStrategyImpl.collectFiles(LoadStrategyImpl.java:732)
at org.eclipse.jst.j2ee.commonarchivecore.internal.impl.ContainerImpl.getFiles(ContainerImpl.java:473)
at org.eclipse.jst.j2ee.commonarchivecore.internal.strategy.EjbJar30NoDDImportStrategyImpl$Discriminator.hasEjbContents(EjbJar30NoDDImportStrategyImpl.java:97)
at org.eclipse.jst.j2ee.commonarchivecore.internal.strategy.EjbJar30NoDDImportStrategyImpl$Discriminator.canImport(EjbJar30NoDDImportStrategyImpl.java:70)
at org.eclipse.jst.j2ee.commonarchivecore.internal.impl.RootEJBJarDescriminatorImpl.canImport(RootEJBJarDescriminatorImpl.java:47)
at org.eclipse.jst.j2ee.commonarchivecore.internal.helpers.ArchiveTypeDiscriminatorImpl.openArchive(ArchiveTypeDiscriminatorImpl.java:161)
at org.eclipse.jst.j2ee.commonarchivecore.internal.impl.RootEJBJarDescriminatorImpl.openArchive(RootEJBJarDescriminatorImpl.java:108)
at org.eclipse.jst.j2ee.commonarchivecore.internal.helpers.ArchiveTypeDiscriminatorImpl.getImportableArchiveFromChild(ArchiveTypeDiscriminatorImpl.java:137)
at org.eclipse.jst.j2ee.commonarchivecore.internal.helpers.ArchiveTypeDiscriminatorImpl.openArchive(ArchiveTypeDiscriminatorImpl.java:165)
at org.eclipse.jst.j2ee.commonarchivecore.internal.impl.CommonarchiveFactoryImpl.openSpecificArchive(CommonarchiveFactoryImpl.java:1527)
at org.eclipse.jst.j2ee.commonarchivecore.internal.impl.CommonarchiveFactoryImpl.openArchive(CommonarchiveFactoryImpl.java:1163)
at org.eclipse.jst.j2ee.commonarchivecore.internal.impl.CommonarchiveFactoryImpl.openNestedArchive(CommonarchiveFactoryImpl.java:1380)
at org.eclipse.jst.j2ee.commonarchivecore.internal.impl.EARFileImpl.openNestedArchive(EARFileImpl.java:1172)
at org.eclipse.jst.j2ee.commonarchivecore.internal.strategy.LoadStrategyImpl.openNestedArchive(LoadStrategyImpl.java:1185)
at org.eclipse.jst.j2ee.commonarchivecore.internal.strategy.LoadStrategyImpl.collectFilesFromLooseArchives(LoadStrategyImpl.java:785)
at org.eclipse.jst.j2ee.commonarchivecore.internal.strategy.LoadStrategyImpl.collectFiles(LoadStrategyImpl.java:731)
at org.eclipse.jst.j2ee.commonarchivecore.internal.impl.ContainerImpl.getFiles(ContainerImpl.java:473)
at org.eclipse.jst.j2ee.commonarchivecore.internal.impl.EARFileImpl.getFiles(EARFileImpl.java:2472)
at org.eclipse.jst.j2ee.commonarchivecore.internal.impl.ContainerImpl.getFile(ContainerImpl.java:222)
at org.eclipse.jst.j2ee.commonarchivecore.internal.impl.ModuleRefImpl.initModuleFileFromEAR(ModuleRefImpl.java:146)
at org.eclipse.jst.j2ee.commonarchivecore.internal.impl.ModuleRefImpl.getModuleFile(ModuleRefImpl.java:120)
at com.ibm.ws.runtime.component.DeployedModuleImpl.isOpen(DeployedModuleImpl.java:238)
at com.ibm.ws.runtime.component.DeployedModuleImpl.close(DeployedModuleImpl.java:293)
at com.ibm.ws.runtime.component.DeployedModuleImpl.initialize(DeployedModuleImpl.java:477)
at com.ibm.ws.runtime.component.DeployedApplicationImpl.initializeModule(DeployedApplicationImpl.java:1274)
at com.ibm.ws.runtime.component.DeployedApplicationImpl.initialize(DeployedApplicationImpl.java:608)
at com.ibm.ws.runtime.component.DeployedApplicationImpl.initialize(DeployedApplicationImpl.java:419)
at com.ibm.ws.runtime.component.ApplicationMgrImpl.initializeApplication(ApplicationMgrImpl.java:364)
... 8 more
Caused by: java.io.FileNotFoundException: E:\IBM\WebSphere\AppServer\profiles\ctgAppSrv01\installedApps\ctgCell01\MAXIMO.ear\mbojava.jar (The system cannot find the file specified.)
at java.io.FileInputStream.<init>(FileInputStream.java:123)
at java.io.FileInputStream.<init>(FileInputStream.java:83)
at org.eclipse.jst.j2ee.commonarchivecore.internal.strategy.DirectoryLoadStrategyImpl.getInputStream(DirectoryLoadStrategyImpl.java:827)
at org.eclipse.jst.j2ee.commonarchivecore.internal.strategy.NestedArchiveLoadStrategyImpl.getZipInputStream(NestedArchiveLoadStrategyImpl.java:296)
at org.eclipse.jst.j2ee.commonarchivecore.internal.strategy.NestedArchiveLoadStrategyImpl.safeGetZipInputStream(NestedArchiveLoadStrategyImpl.java:336)

... 37 more


I synchronise the nodes by stopping the node and then starting the node





Then restart the MXServer.

Now MAXIMO starts



Now in Maximo I point the Asset object to the custom class:

The original class is: (I have a scheduler and HSE installtion on this machine, so that is why the plusg class is the original)
psdi.plusg.app.asset.PlusGAssetSet

I point it to:
custom.app.asset.AssetCust


Set Maximo to Admin Mode and do a Database Configuration

Now when I go to the Asset application I get all invalid bindings and when trying to insert a new asset I get the following error:

BMXAA4160E - A major exception has occurred. Check the system log to see if there are any companion errors logged. Report this error to your system administrator.

custom.app.asset.AssetCust.<init>(psdi.mbo.MboServerInterface)



hmmm ok... Am i extending the wrong class in mu Custom made class? Maybe because of the HSE isntalaltion I need to extend that class?

I read through Bruno his blog and on the Extending Java page he explaines that the "Set" must also be extended.
http://maximodev.blogspot.nl/p/java-customization.html

This makes sense as I replaced a "Set" class with a non "Set" class in the Database Configuration.

So back to Eclipse.
I add another class file, named AssetCustSet with the following code:

package custom.app.asset;

import java.rmi.RemoteException;

import psdi.app.asset.AssetSet;
import psdi.app.asset.AssetSetRemote;
import psdi.mbo.Mbo;
import psdi.mbo.MboServerInterface;
import psdi.mbo.MboSet;
import psdi.util.MXException;

public class AssetCustSet extends AssetSet implements AssetSetRemote
{
  public AssetCustSet(MboServerInterface ms)
    throws MXException, RemoteException
  {
    super(ms);
  }

  protected Mbo getMboInstance(MboSet ms)
    throws MXException, RemoteException
  {
    return new AssetCust(ms);
  }

}


for the overview, the AssetCust looks like this:

package custom.app.asset;

import java.rmi.RemoteException;

import psdi.app.asset.Asset;
import psdi.app.asset.AssetRemote;
import psdi.mbo.MboRemote;
import psdi.mbo.MboSet;
import psdi.mbo.MboSetRemote;
import psdi.util.MXException;

public class AssetCust extends Asset implements AssetRemote
{
  public AssetCust(MboSet ms)
    throws MXException, RemoteException
  {
    super(ms);
  }

  public void save()throws MXException, RemoteException {
super.save();
int id = getInt("ASSETID");
String desc = getString("DESCRIPTION");
System.out.println("Saving Asset ID=" + id + " desc=" + desc);
  }

}


Save and copy the class files from the bin directory in the businessobject.jar directory.

Note:
I now use the rapid deployment method explained here (The super fast approach)
http://maximodev.blogspot.nl/2012/08/maximo-rapid-java-class-deploy-websphere.html


I restart the MXServer.

Then, instead of pointing the asset object to custom.app.asset.AssetCust I point it to custom.app.asset.AssetCustSet

I do a database configuration and go to the Asset application. Now the applciation shows up normally.
I change an asset and insert a new one.
Now I check the systemOut.log



The lines from the code show up in the log. So it works.
